EC 12025-03

產品類別:
Chinese, Traditional
產品名稱:
DC Cooling Fan

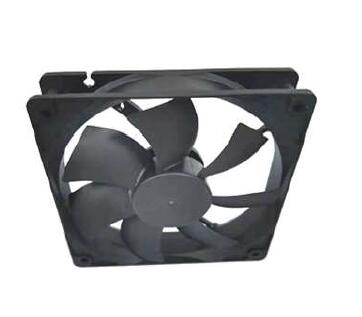

DC Cooling Fan (EC 12025-03)
產品檔案:

SIZE:
120mm×120mm×25mm(4.72"×4.72"×0.98")
CONSTRUCTION:
Glass fiber reinforced plastic:
Impeller and housing PBT are UL 94V-0 rating
Lead wire available
EC(AC to DC) brushless motor
With rotor lock protection(auto restart)
DIELECTRIC STRENGTH:
WITHSTANDING at 1500V AC 60Hz one minute
(between frame and terminal)
INSULATION RESISTANCE
10mega Ohm min.at 500 VDC (between frame and terminal)
OPERATING TEMPERATURE:
Ball bearing: -10℃ to +75℃
FUNCTION(Optional):
IP55
WEIGHT:
110 grams



Specifications:

    RATED   OPERATING MAX. MAX.       MAX. AIR
MODEL NO. BEARING   FREQUENCY VOLTAGE   INPUT SPEED MAX. AIR FLOW     NOISE
VOLTAGE   RANGE CURRENT POWER       PRESSURE
    VEC HZ VAC mA W R.P.M. m3/min CFM mmH2O inH2O dB-A
EC12025LB-03 Ball 115 60 90~250 75 3 2000 1.9 66.5 2.2 0.1 33.8
230 50 70
